Liugong 's 12 ton static roller compactor CLG6312 is a new generation of roller compactor. It has the advantages of durability, reliability, and easy maintenance. It has been tested and favored by customers.

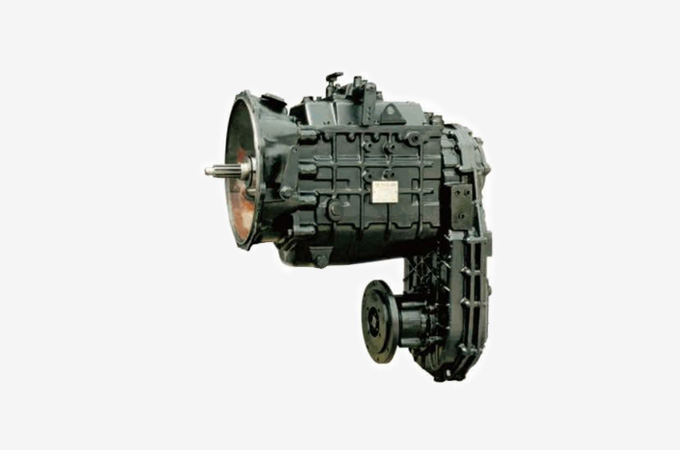

Liugong, with its leading design and manufacturing technology, pioneered the use of synchronizer shift gearboxes in road rollers to lead the industry; Automotive shift gearbox, flexible shifting, comfortable operation, compact structure, durability, high component versatility, low maintenance cost
Harbin gearbox has high reliability and low failure rate to meet various working conditions.

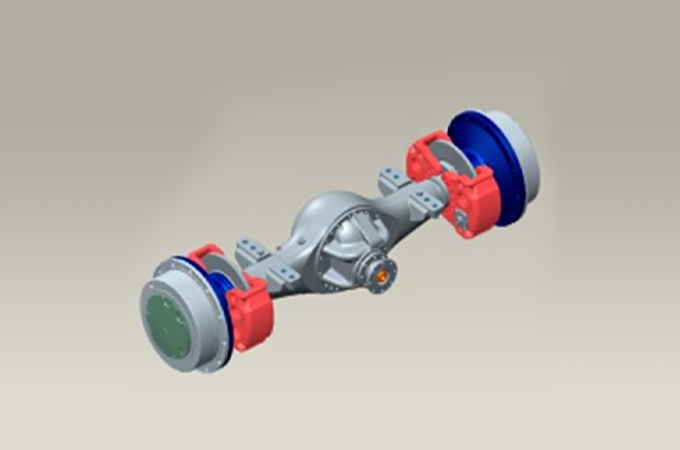

Separate PR50.23A drive axle, large load, high transmission efficiency, tested, parts high versatility, low maintenance costs.
- Inverted engine layout, gearbox, clutch rear, Liugong invention patent.

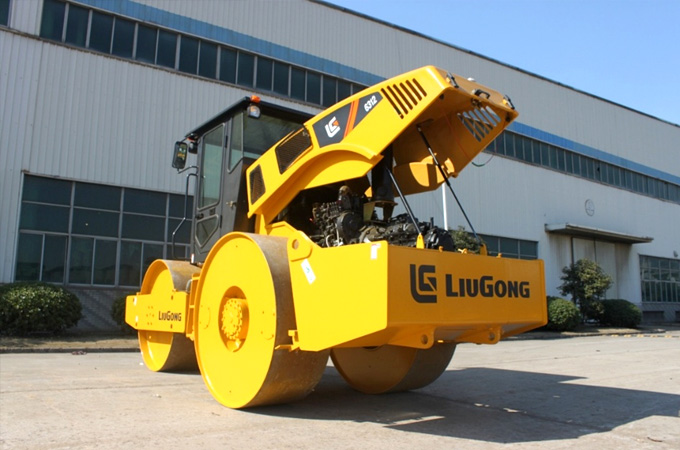

- The hood, which can be opened at a large angle, makes the maintenance of the engine, gearbox and clutch very convenient, and has advantages that other competitors cannot match.
- large radiator to clean up space, easy to clear the jam, to avoid overheating the radiator.
|Max. Operating Mass||12,100 kg|
|Min. Operating Mass||10,100 kg|
|Mass on Steering Drum||4,300 kg|
|Mass on Driving Drum||7,800 kg|
|Emission Regulation||Tier 2 / Stage II|
|Rated Power||73 kW (98 hp / 99 ps) @ 2,200 rpm|
|Working Speed||11.8 km/h|
|Static Linear Front Drum Load||345 N/cm|
|Static Linear Rear Drum Load||695 N/cm|
|Overall Length||5,990 mm|
|Overall Width||2,120 mm|
|Overall Height||3,060 mm|
